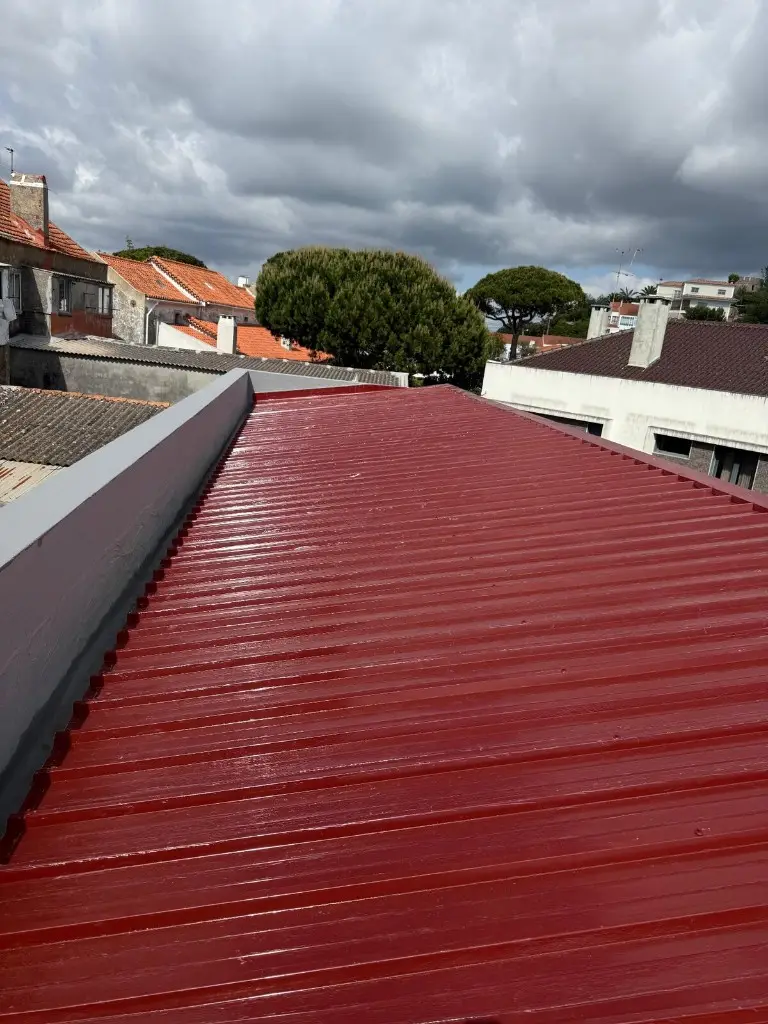

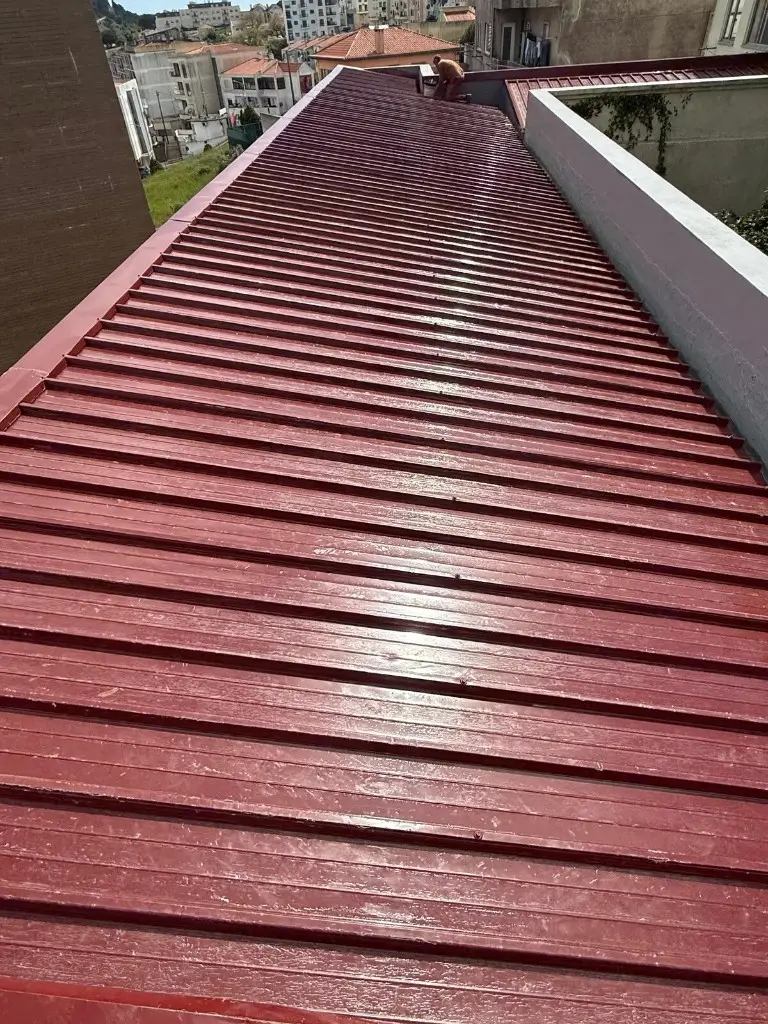

Industrial sandwich-panel roofs
Construction, replacement and rehabilitation of industrial roofs with 5-rib sandwich panels, to EN 14509.
- Profile
- 5 ribs, 250 mm pitch, 1000 mm cover width
- Core
- PUR or PIR, 30 to 150 mm, λ 0.021 W/m·°C
- Thermal transmittance
- U 0.59 to 0.13 W/m²·°C
- Minimum pitch
- 5%
- Steel
- S250GD, 25 µm polyester
- Standard
- EN 14509 · B-s2,d0
- 1000 mm cover width
- 250 mm pitch
- 38 mm rib
- PUR or PIR core
Build-up
- 01Steel structure
- 02Purlins, according to thickness and load
- 035-rib panel: sheet, PUR or PIR core and inner sheet
- 04Side lap and 100 to 300 mm end-lap cut
- 05Self-drilling fastener with washer
- 06Ridge, verge flashings and gutter
